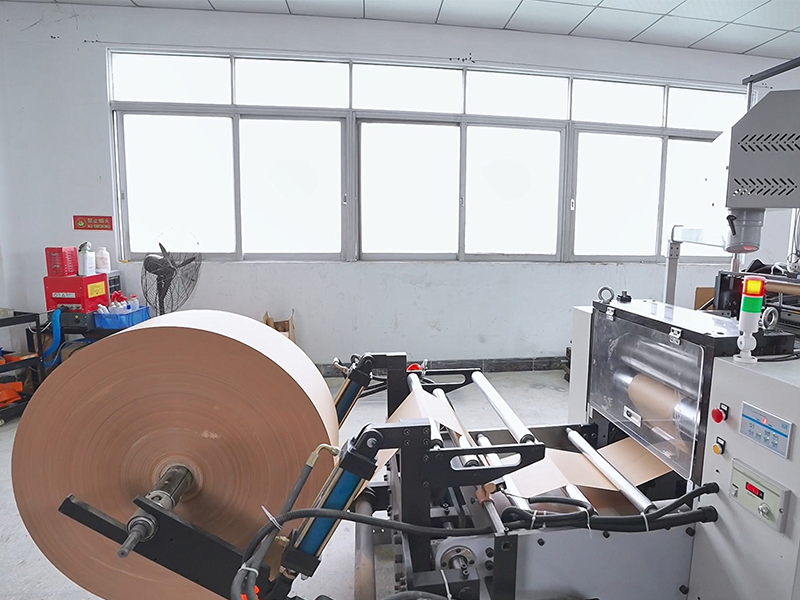

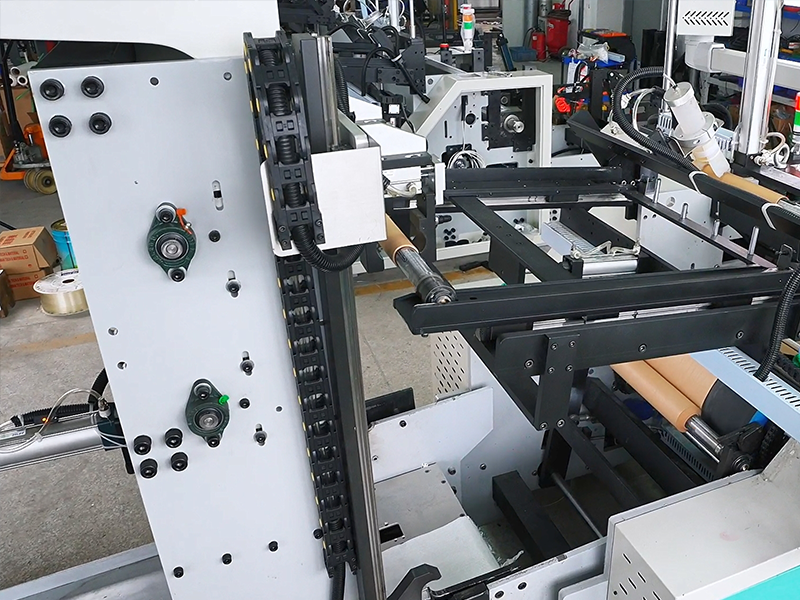

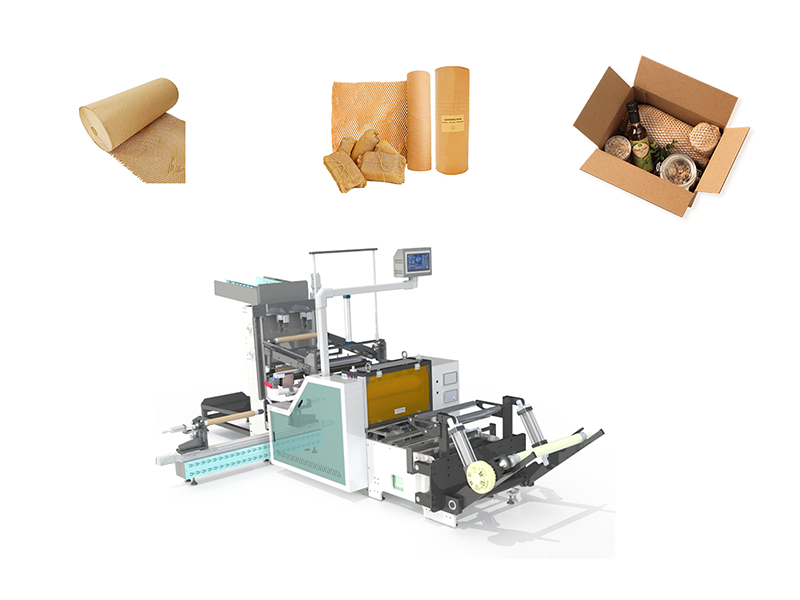

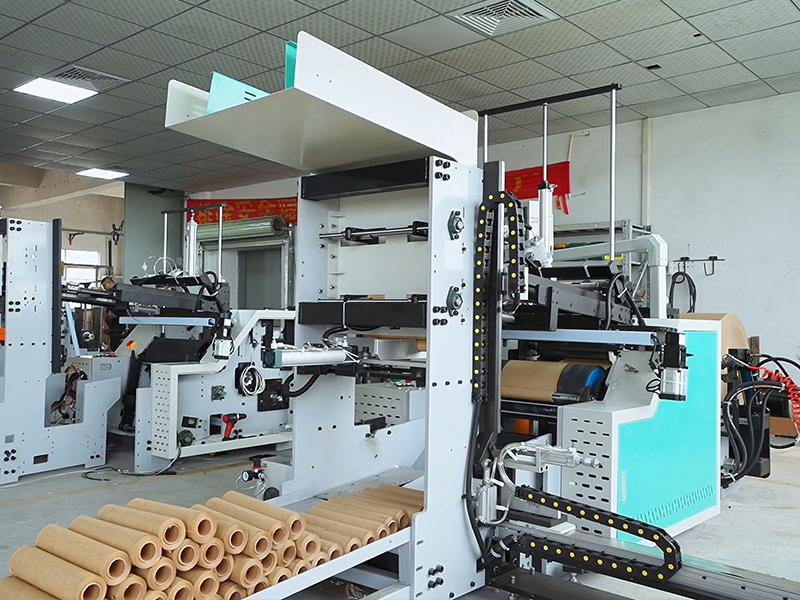

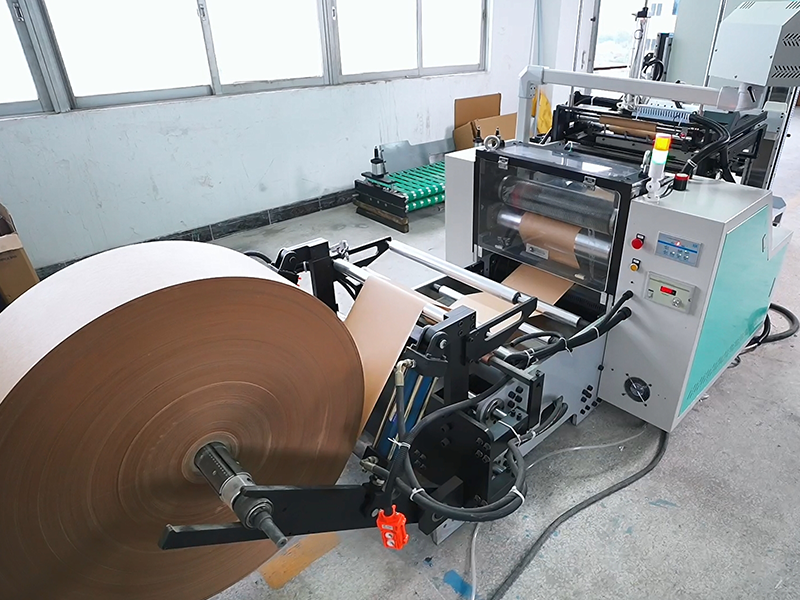

PAPBEE HONEYCOMB PAPER WRAPPING MAKING MACHINE
PAPBEE HONEYCOMB PAPER WRAPPING MAKING MACHINE

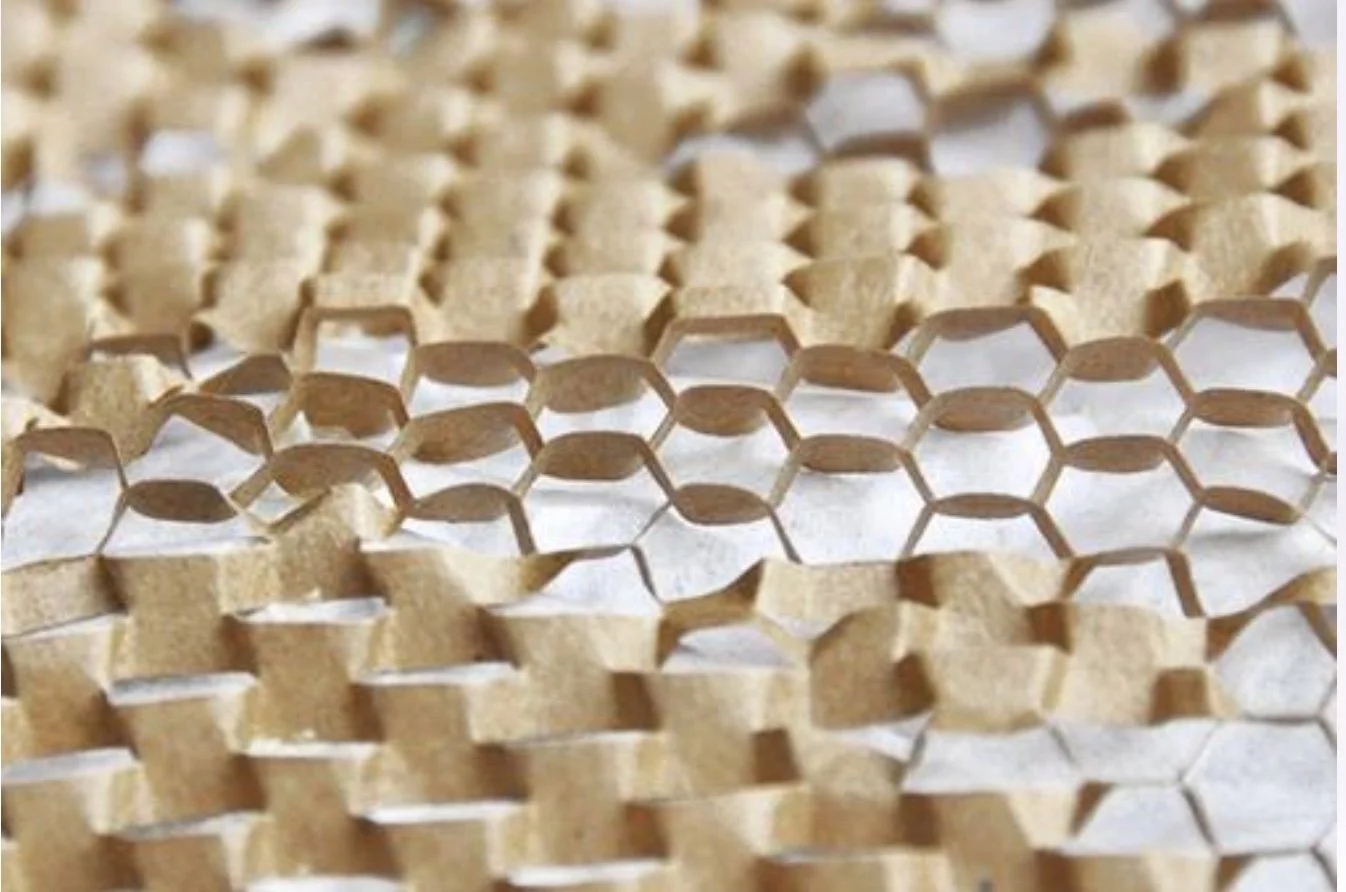

PAPBEE is used for rewinding white paper, yellow paper, kraft paper inroll into honeycomb net.Net making and rewinding could be completed atthe same time.
Features:
1. Withhighefficiency and energy saving.
2. Fast dynamic response and stable runningspeed are the significant advantages.
3. Adopts frequency conversion speed regulation, fullyintegrated circuit control.
4. Complete functions, good repeatability, stablespeed.
5. Reliable work. Absolutely correct movement.
6. Winding and unwinding tension is automatically controlled.
7. Two sections of electronic meter to ensure the accuracy.
Specs :
Max unwinding width : 19 inc (500mm)
Max unwinding diameter : 47 inc (1200mm)
Unwinding paper core : 76.2mm /3 inch
Max rewinding diameter : 11.8inc (300mm)
Rewinding paper core ; 1 inch,1.5 inch, 2 inch(pls choose one)
Machine speed: 390 FPM MAX - 100-120m/min
Machine power : 4KW
External pressure：6-8kg/c㎡
Machine weight : 2.7 US Tone
Machine Size : ( 11 ft X 6.5 ft X 5.5 ft ) 3200*2000*1700mm
