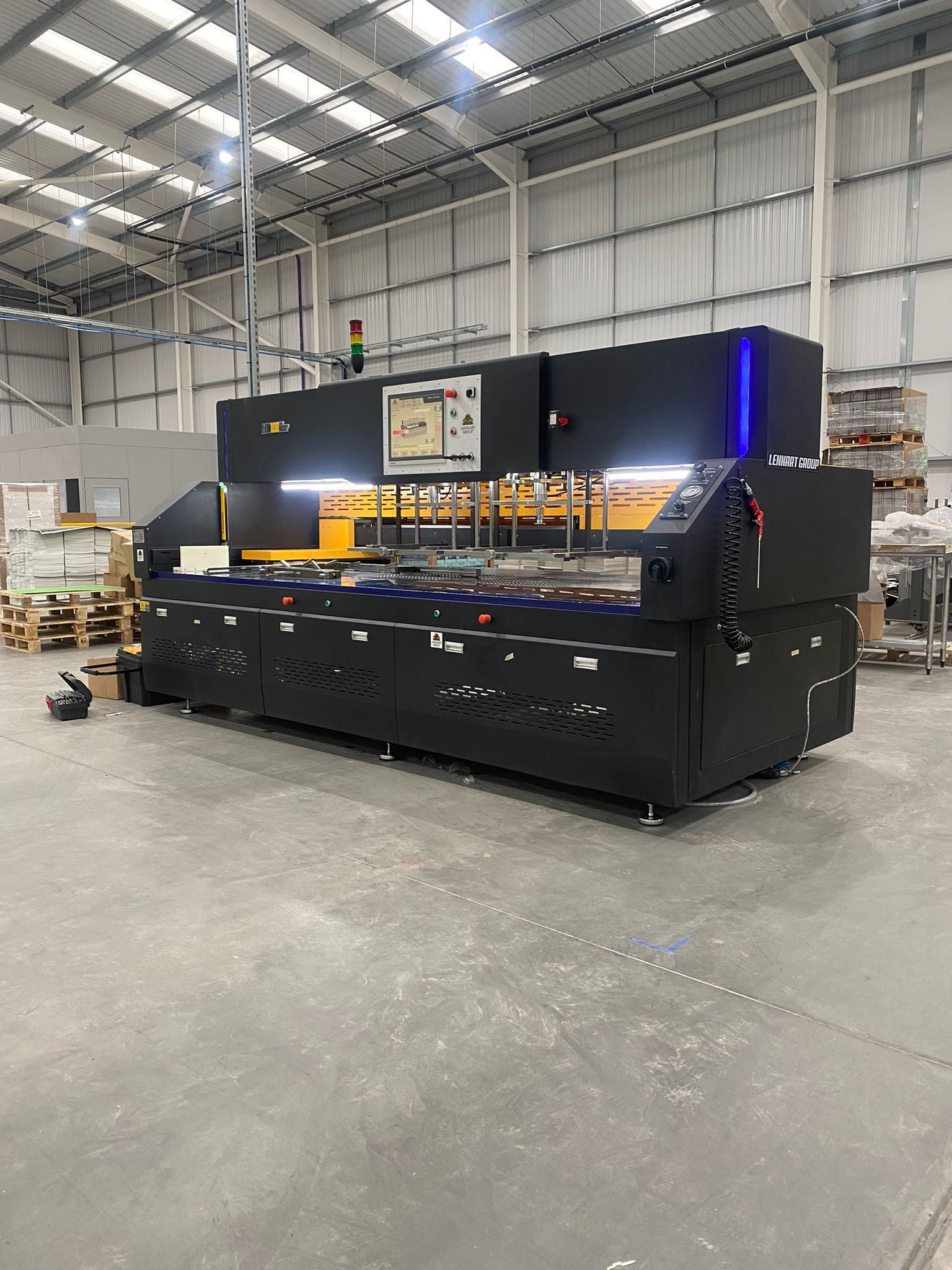

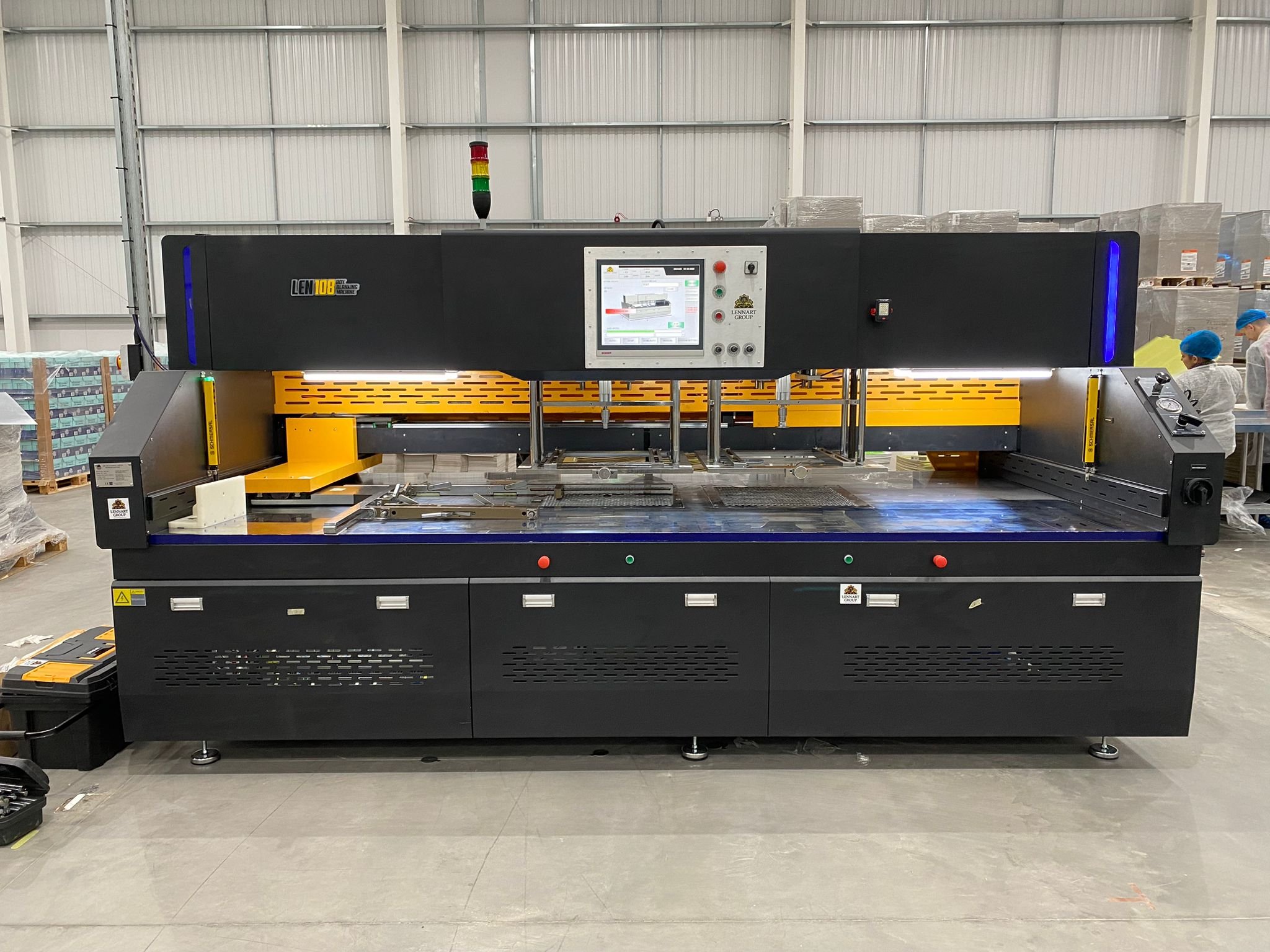

BOX BLANKING / STRIPPING MACHINE -

LEN 108

Max Sheet Size : 42 inch  X 31 inch

Max Box(product) Blanking Size : 21,65 inch X 24,65 inch

BECKHOFF INTEGRATED - ALL PARTS - INDUSTRY 4.0

TECHNICAL INFORMATION

Max Sheet Size : 42 inch  X 31 inch

Min Sheet Size : 11 inch X 11 inch

Max Product(stripping) size  ; 21,65 inch X 21,65 inch

Min Product  ( stripping) size   ; 1,18 inch X 1,18 inch

Double Head for 2 Angle Jobs OR  One Head for Open Window and Other will be Stripping

Max Electric Consumption:.6 KW – 3 Phase -380V-400V ( Can be modified for USA)

Machine Size ; 147 inch X71 inch X 74 inch

Weight; 7716 LBS

Max Hydraulic Pressure Bar; 360

Max Speed; 25 Push/Min

Max Thickness of Pile;4 inch

Min Thickness of Pile; 2 inch

·       ELECTRONIC PARTS (All Parts Imported From Germany)

-        Beckhoff Industrial PC Board ( WINDOWS BASE )

-        Beckhoff 19’’ HD Multitouch Screen

-        Beckhoff Digital Double Servo Drive and Servo Motors

-        Beckhoff Ether Cat 3 Industrial 4.0 User Interface

-        Beckhoff Power Supply

-        Schneider - Circuit Boards  and Security Switches

Eaton -  BUTTONS

·       Pneumatic Parts (All Parts Imported From Germany)

-        Festo Pneumatic Cylinders

-        Festo Pressure Regulators

·       Security Sensor & Movement sensors

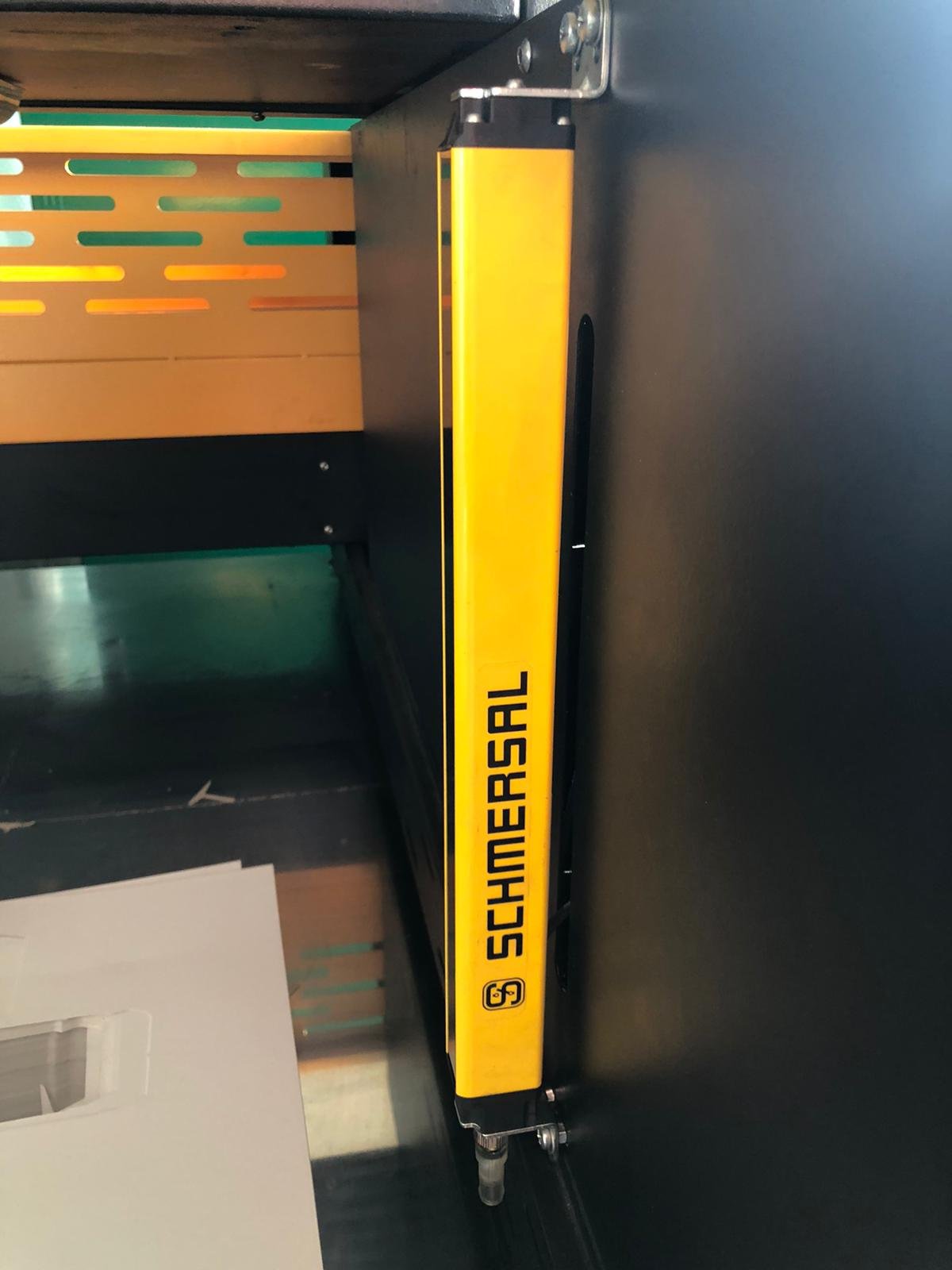

-        Schmersal Security Body Curtain  ( Made in Germany )

-        Baumer Inductive Distance Sensors ( Made in Germany )

·       Metal Parts and Painting

-        Wurth connection screws and connection units (Imported from Germany)

-        Stainless Steel Moving Plate ( Steel Imported from Czech Republic )

-        ST-52 and ST-37 black steel plates (Imported from Germany)

-        Plastic heads for sticks ( Made In Turkey & Food Safety Approved )

-        linear screw motion guide ( Made in Germany )

 ·       Cylinder Rods And Bearing Units (All Parts Imported From Germany)

-        Igus Flanged Bearing Units

-        Igus Metal Cylinders

-        Igus Plastic Shock Absorbers

-        Igus Cylindrical Bearing Units

 ·       Hydraulic Parts ;

-        Hydraulic Pistons (Rexroth BOSCH supplier ) Design in Germany (Made in Turkey)

-        Rexroth BOSCH Hydraulic Valves ( Made in Germany)

-        Hydraulic Pumps ( Design in Germany ,Made in Turkey )

-        Hydraulic Block (Rexroth – Made in Germany )

·       Motor :

-        ABB  & WAT- 5 KW motor ( depending on stocks )
